Adjustable positive linear voltage regulator with a 1.5A output current capability. Features a maximum input voltage of 30V and a dropout voltage of 1.3V. Operates within a temperature range of 0°C to 125°C. Housed in a TO-220 package for through-hole mounting. RoHS compliant and lead-free.
PackageTO-220
Current Rating1.5kA
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086IT-ADJ/NOPB technical specifications.
General
Package/Case
TO-220
Current Rating
1.5kA
Dropout Voltage
1.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
15V
Min Output Voltage
1.25V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
15V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086IT-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086IT-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

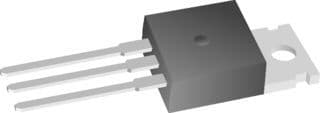

Product Images
