800mA, 3.3V fixed output positive linear voltage regulator with 1% output voltage accuracy. Features a 1.2V dropout voltage and a maximum input voltage of 15V. Operates across a temperature range of -40°C to 125°C. Packaged in a TO-252 surface mount case. Offers a Power Supply Rejection Ratio (PSRR) of 75dB.
PackageTO-252
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1117IDT-3.3/NOPB technical specifications.
General
Accuracy
1%
Package/Case
TO-252
Dropout Voltage
1.2V
Lead Free
Lead Free
Min Current Limit
800mA
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
3.3V
Max Supply Current
10mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
15mA
Radiation Hardening
No
Reach SVHC Compliant
No
Series
LM1117-3.3
Termination
SMD/SMT
Thickness
2.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1117IDT-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1117IDT-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

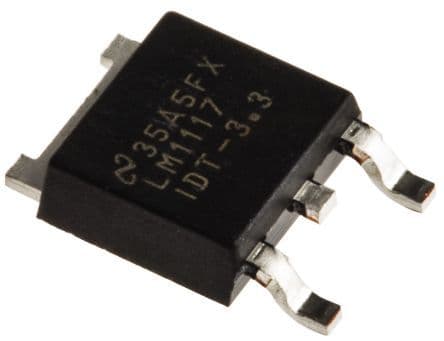

Product Images
