800mA positive fixed output linear voltage regulator with a 3.3V nominal output voltage and 1% accuracy. Features a low dropout voltage of 1.2V and a maximum input voltage of 15V. This surface mount component is housed in a TO-252 package, measuring 6.58mm in length, 6.1mm in width, and 2.55mm in height. Operating temperature range is -40°C to 125°C, with RoHS compliance.
PackageTO-252
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1117IDTX-3.3/NOPB technical specifications.
General
Package/Case
TO-252
Dropout Voltage
1.2V
Height
2.55mm
Lead Free
Lead Free
Length
6.58mm
Min Current Limit
800mA
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
15mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
2.3mm
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1117IDTX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1117IDTX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

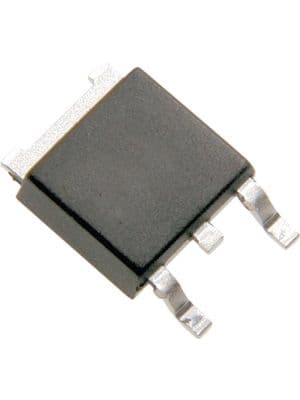

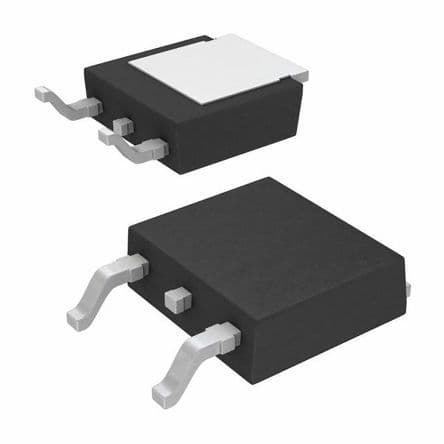

Product Images
