800mA fixed 3.3V positive linear voltage regulator with 1% output voltage accuracy. Features an 800mA output current rating and a 1.2V dropout voltage. Operates from a maximum input voltage of 15V, with a wide operating temperature range of -40°C to 125°C. Packaged in a TO-220 through-hole mount.
PackageTO-220
Current Rating800A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1117T-3.3/NOPB technical specifications.
General
Accuracy
1%
Package/Case
TO-220
Current Rating
800A
Dropout Voltage
1.2V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1117T-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1117T-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

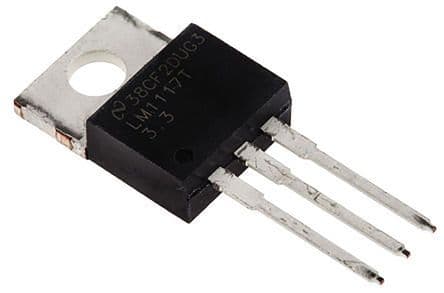

Product Images
