Technical Specifications
Texas Instruments LM111FKB technical specifications.
General
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Response Time | 165ns |
| RoHS Compliant | No |
| Supply Current | 6mA |
| Technology | BIPOLAR |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM111FKB Datasheet
Download the complete datasheet for Texas Instruments LM111FKB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

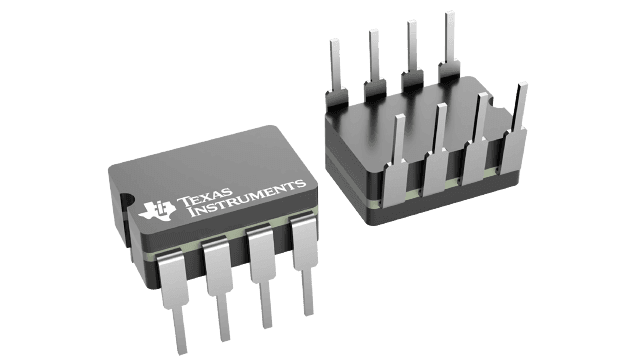

Product Images
