Texas Instruments
LM117HVH-QML
Military Grade 60V input 1.5A Adjustable Output Linear Regulator / LDO 3-TO -55 to 125
PackageTO-39
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM117HVH-QML technical specifications.
General
Package/Case
TO-39
Dropout Voltage
1.5V
Lead Free
Contains Lead
Max Input Voltage
60V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
1.5A
Mount
Through Hole
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
57V
Package Quantity
20
Packaging
Tray
Polarity
Positive
Quiescent Current
9uA
Radiation Hardening
Yes
Reference Voltage
1.3V
RoHS Compliant
No
Series
LM117HVQML
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM117HVH-QML Datasheet
Download the complete datasheet for Texas Instruments LM117HVH-QML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

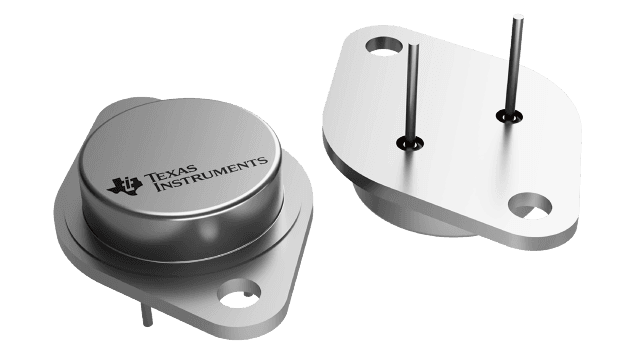

Product Images
