PackageLCC
Current11mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM119E/883 technical specifications.
General
Package/Case
LCC
Input Bias Current
500nA
Input Offset Voltage (Vos)
3.8mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
36V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Output Current
25mA
Packaging
Rail/Tube
Power Dissipation
500mW
Response Time
80ns
RoHS Compliant
Yes
Supply Current
11mA
Technology
BIPOLAR
Voltage Gain
92.04dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM119E/883 Datasheet
Download the complete datasheet for Texas Instruments LM119E/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

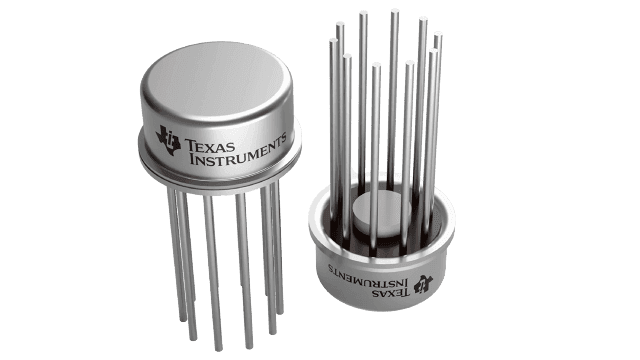

Product Images
