High-speed dual comparator featuring 2 channels and 2 elements, operating with a dual supply voltage range of 2.5V to 18V and a single supply voltage range of 5V to 36V. Boasts a typical response time of 0.025µs, 80dB common mode rejection ratio, and 500nA input bias current. This surface mount component, built with BIPOLAR technology, offers a maximum supply current of 5.5mA and an output current of 25mA. Designed for demanding environments, it operates from -55°C to 125°C and includes radiation hardening.
Current5.5mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM119WGRLQMLV technical specifications.
General
Common Mode Rejection Ratio
80dB
Input Bias Current
500nA
Input Offset Voltage (Vos)
4mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Current
5.5mA
Max Supply Voltage
36V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Output Current
25mA
Package Quantity
54
Packaging
Tray
Power Dissipation
500mW
Radiation Hardening
Yes
Response Time
0.025us
RoHS Compliant
No
Series
LM119QML-SP
Supply Current
5.5mA
Technology
BIPOLAR
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM119WGRLQMLV Datasheet
Download the complete datasheet for Texas Instruments LM119WGRLQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

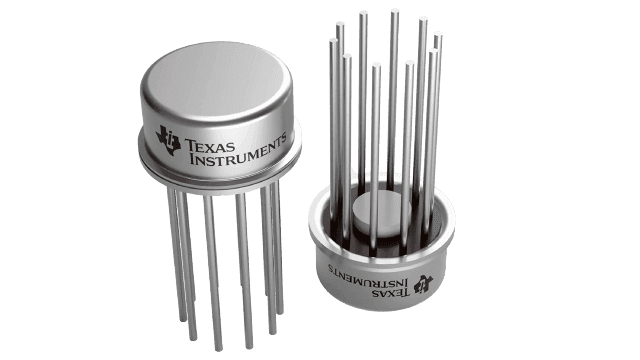

Product Images
