High-speed dual comparator featuring 2 channels and 2 elements, operating from a 2.5V to 36V supply range with a maximum dual supply voltage of 18V. Offers a fast 0.025µs response time and 25mA output current. Designed for demanding environments with radiation hardening and a wide operating temperature range of -55°C to 125°C. This bipolar technology component has a 80dB common mode rejection ratio and 475nA input bias current. Available in a 10-CFP package for through-hole and surface mount applications.
PackageCDIP
Current11mA
MountingThrough Hole, Surface Mount
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM119WRLQMLV technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
80dB
Input Bias Current
475nA
Input Offset Voltage (Vos)
3.8mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Current
-4.2mA
Max Supply Voltage
36V
Min Supply Voltage
5V
Mount
Through Hole, Surface Mount
Number of Channels
2
Number of Elements
2
Output Current
25mA
Package Quantity
19
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
Yes
Response Time
0.025us
RoHS Compliant
No
Series
LM119QML-SP
Supply Current
11mA
Technology
BIPOLAR
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM119WRLQMLV Datasheet
Download the complete datasheet for Texas Instruments LM119WRLQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

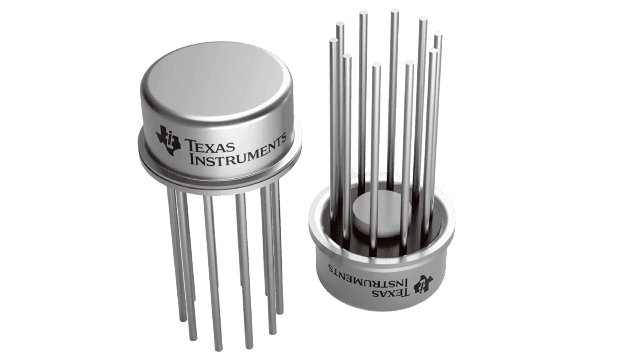

Product Images
