12-Bit Plus Sign Data Acquisition System, featuring 8 analog input channels and a 114 kS/s conversion rate. This general-purpose converter offers 1LSB integral nonlinearity and 0.75LSB differential nonlinearity, with a full-scale error of 2LSB. Operating from a 3V to 5.5V supply, this surface-mount component utilizes a parallel interface and supports bipolar signals. Designed for a temperature range of -40°C to 85°C, it provides a 77.5dB signal-to-noise ratio.
PackagePLCC
MountingSurface Mount
PolarityBipolar
Power30mW
Quick Jump:
Technical Specifications
Texas Instruments LM12458CIV technical specifications.
General
Package/Case
PLCC
Conversion Rate
114KS/s
Converter Type
GENERAL PURPOSE
Differential Nonlinearity
0.75LSB
Full Scale Error
2LSB
Height
3.68mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Contains Lead
Length
16.51mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
12
Number of Channels
8
Number of Converters
1
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
30mW
Resolution
12b
RoHS Compliant
No
Sampling Rate
114KS/s
Signal to Noise Ratio (SNR)
77.5dB
Supply Type
Analog, Digital
Width
16.51mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM12458CIV Datasheet
Download the complete datasheet for Texas Instruments LM12458CIV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

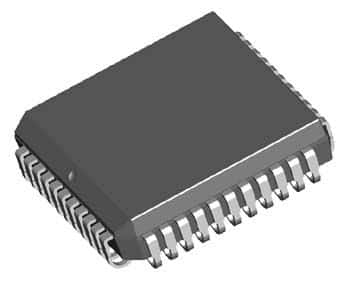

Product Images
