12-Bit, 8-Channel Analog Data Acquisition System with 88 kSPS sampling rate and bipolar input polarity. Features 1 LSB Integral Nonlinearity (INL) and 0.75 LSB Differential Nonlinearity (DNL). Operates from a 3V to 5.5V supply, with a typical 5V operating voltage and 30mW power consumption. Packaged in a 44-PLCC for surface mounting, this component offers a parallel interface and operates across a -40°C to 85°C temperature range.
PackagePLCC
MountingSurface Mount
PolarityBipolar
Power30mW
Quick Jump:
Technical Specifications
Texas Instruments LM12458CIV/NOPB technical specifications.
General
Package/Case
PLCC
Differential Nonlinearity
0.75LSB
Height
3.68mm
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Length
16.51mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of Bits
12
Number of Channels
8
Number of Elements
1
Number of Inputs
8
Operating Supply Voltage
5V
Packaging
Rail/Tube
Polarity
Bipolar
Power Consumption
30mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
114KS/s
Supply Type
Analog, Digital
Width
16.51mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM12458CIV/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM12458CIV/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

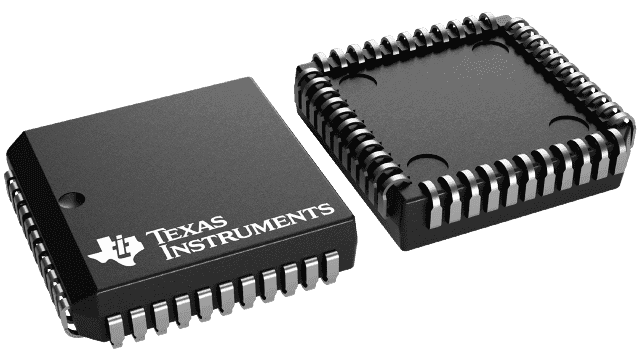

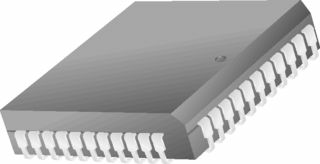

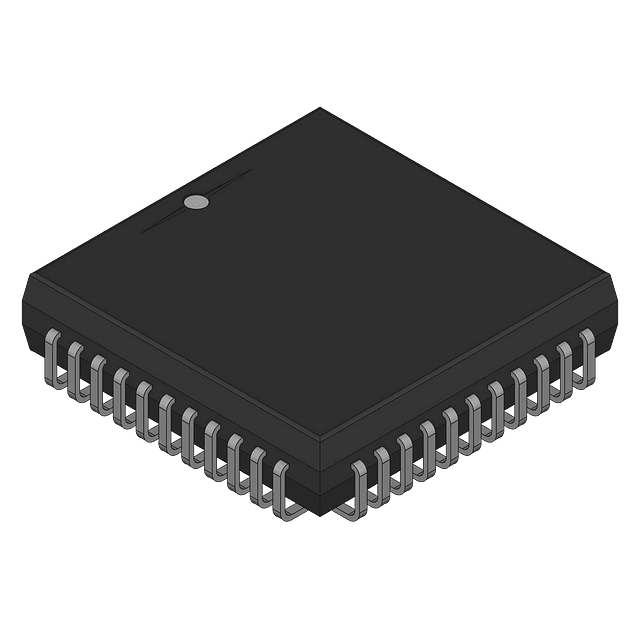

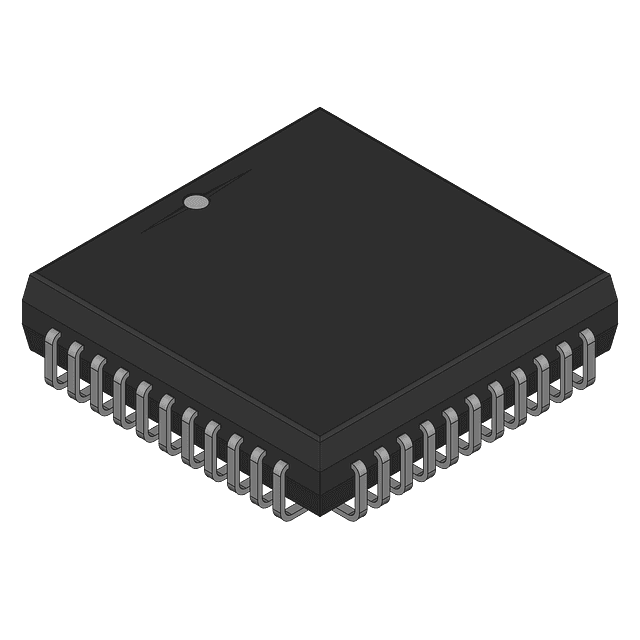

Product Images
