Current700uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM124AWRLQMLV technical specifications.
General
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Input Bias Current
50nA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Operating Supply Voltage
16V
Output Current
40mA
Packaging
Rail/Tube
Radiation Hardening
Yes
RoHS Compliant
No
Slew Rate
0.5V/µs
Supply Current
700uA
Technology
BIPOLAR
Voltage Gain
93.98dB
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM124AWRLQMLV Datasheet
Download the complete datasheet for Texas Instruments LM124AWRLQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

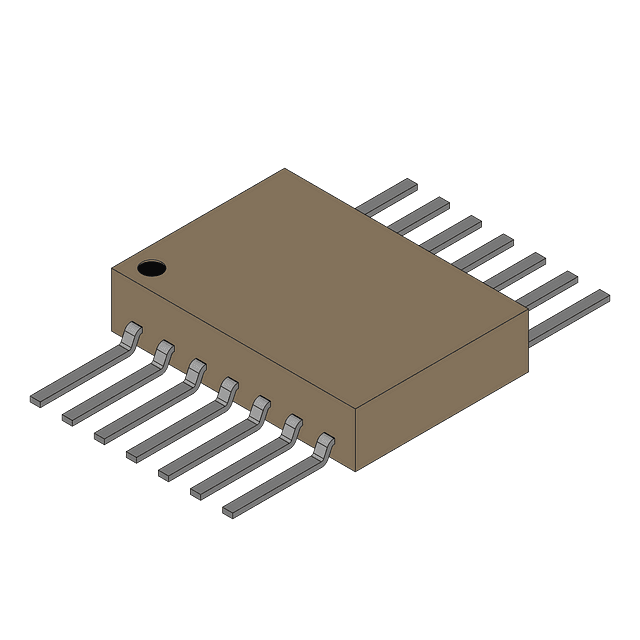

Product Images
