PackagePQFP
MountingSurface Mount
PolarityBipolar
Power34mW
Quick Jump:
Technical Specifications
Texas Instruments LM12H458CIVF technical specifications.
General
| Package/Case | PQFP |
| Conversion Rate | 182KS/s |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 875mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Converters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 34mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 140000S/s |
| Signal to Noise Ratio (SNR) | 77.5dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM12H458CIVF Datasheet
Download the complete datasheet for Texas Instruments LM12H458CIVF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

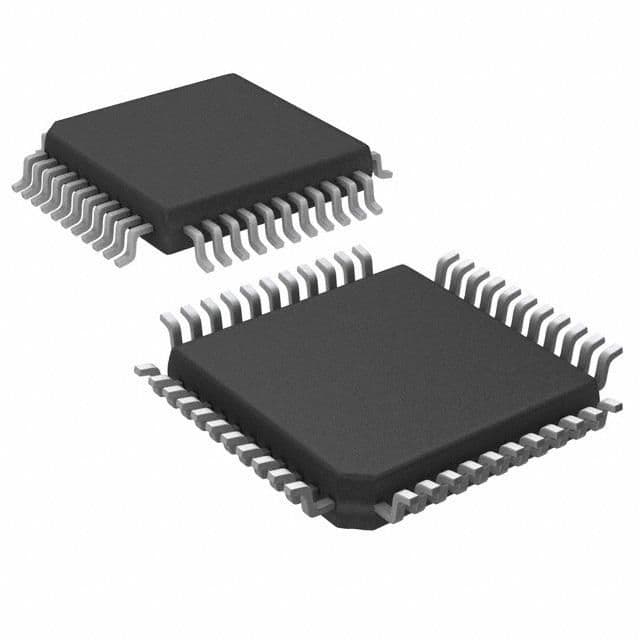

Product Images
