Adjustable output negative voltage regulator, an LDO with a 1.5A output current capability. Features a wide operating temperature range from -55°C to 150°C and supports a maximum input voltage of -40V. Delivers a nominal supply current of 65µA with a quiescent current of 400µA. This lead-free component is housed in a TO-39-3 package for through-hole mounting.
PackageTO-39-3
MountingThrough Hole
PolarityNegative
Power2W
Quick Jump:
Technical Specifications
Texas Instruments LM137H technical specifications.
General
Accuracy
4%
Package/Case
TO-39-3
Lead Free
Lead Free
Min Current Limit
1.5A
Max Input Voltage
-40V
Min Input Voltage
-4.2V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
500mA
Max Power Dissipation
2W
Max Supply Voltage
-4.2V
Min Supply Voltage
-40V
Mount
Through Hole
Nominal Supply Current
65uA
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
-37V
Packaging
Rail/Tube
Polarity
Negative
Power Dissipation
2W
Quiescent Current
400uA
Reference Voltage
-1.275V
RoHS Compliant
Yes
Thickness
4.445mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM137H Datasheet
Download the complete datasheet for Texas Instruments LM137H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

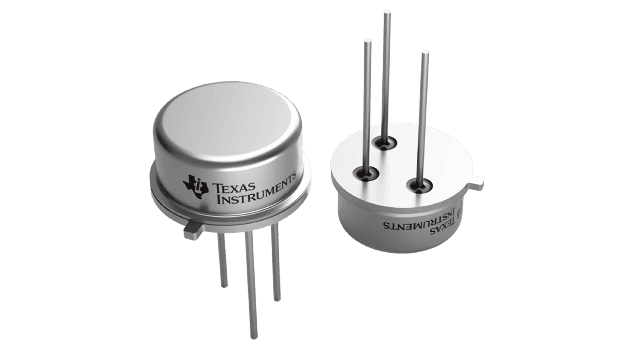

Product Images
