Quad comparator IC featuring rail-to-rail output and TTL output type. Operates with dual supply voltages from ±1V to ±15V or single supply from 2V to 36V. Offers a maximum supply current of 500µA and a response time of 1.3µs. This surface-mount component is housed in a 14-pin SOIC package and supports a wide operating temperature range from -55°C to 125°C.
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM139D technical specifications.
General
Package/Case
SOIC
Input Bias Current
100nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Current
500uA
Max Supply Voltage
36V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Output Compatibility
CMOS
Output Current
20mA
Output Current per Channel
6mA
Output Type
TTL
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
2mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
1.3us
RoHS Compliant
No
Series
LM139
Supply Current
2mA
Technology
BIPOLAR
Voltage Gain
106.02dB
Weight
0.004515oz
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM139D Datasheet
Download the complete datasheet for Texas Instruments LM139D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

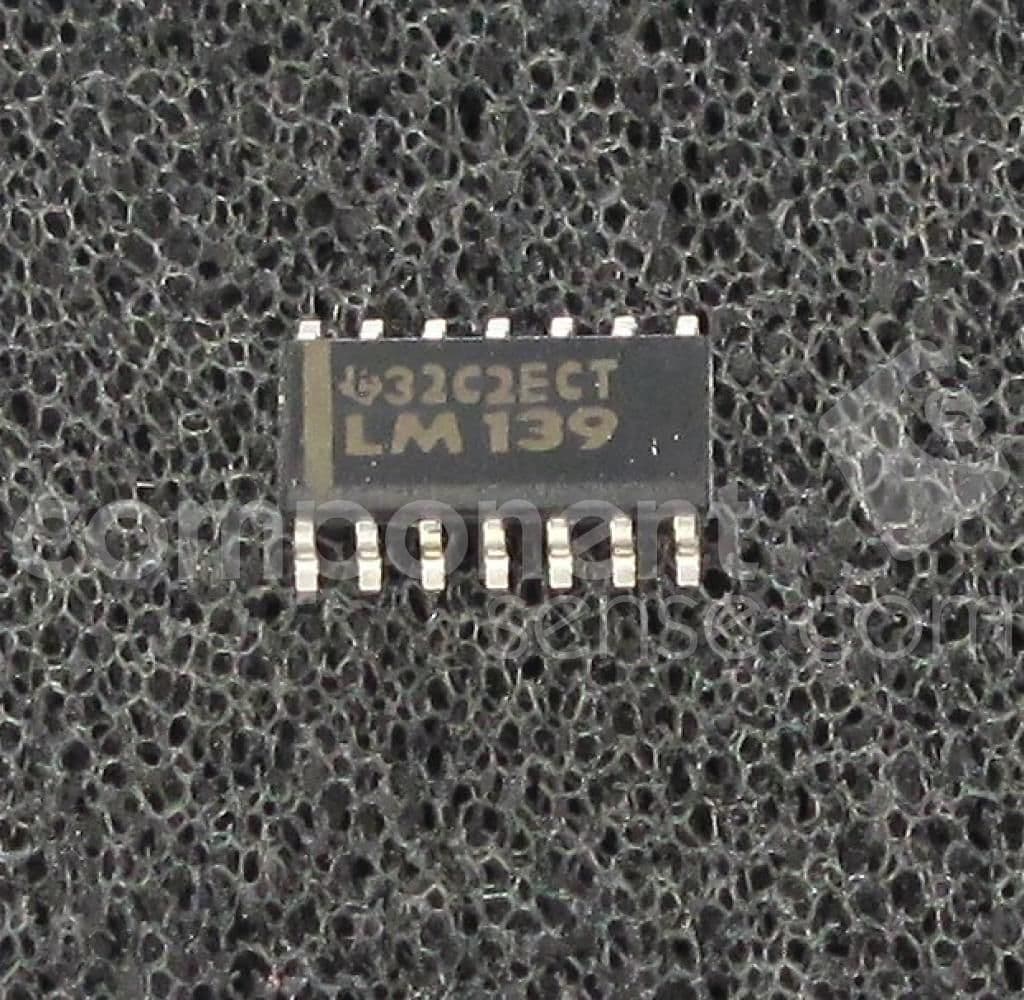

Product Images
