Positive fixed output linear voltage regulator, 1A output current, 5V output voltage with 2% accuracy. Features a 2V dropout voltage and a maximum input voltage of 35V. Operates across a wide temperature range from -55°C to 125°C. Packaged in a TO-3 through-hole mount.
PackageTO-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM140K-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-3
Dropout Voltage
2V
Lead Free
Lead Free
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Packaging
Tray
Polarity
Positive
Quiescent Current
6mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM140K-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM140K-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

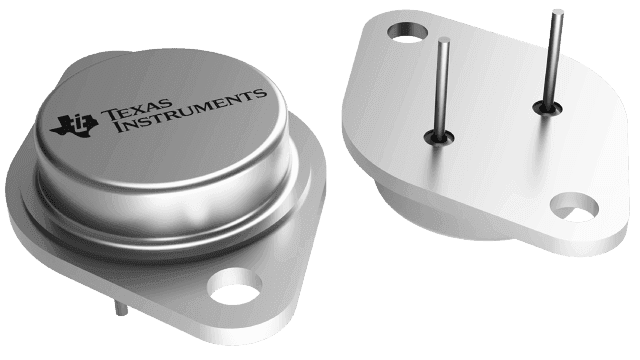

Product Images
