Texas Instruments
LM140LAH-15
Extended Temperature 100mA Fixed Output Linear Regulator / LDO 3-TO -55 to 125
PackageTO-39-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM140LAH-15 technical specifications.
General
Package/Case
TO-39-3
Dropout Voltage
1.5V
Lead Free
Contains Lead
Min Input Voltage
23V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Voltage
15V
Output Voltage Accuracy
2%
Package Quantity
500
Packaging
Bulk
Polarity
Positive
Quiescent Current
4.5mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM140LAH-15 Datasheet
Download the complete datasheet for Texas Instruments LM140LAH-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

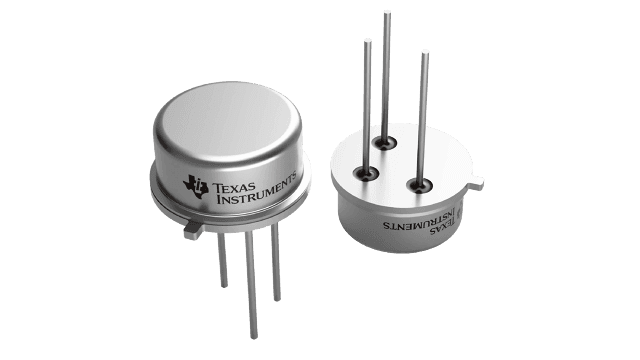

Product Images
