Texas Instruments
LM140LAH-15/883
Military Grade 100mA Fixed Output Linear Regulator / LDO 3-TO -55 to 125
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM140LAH-15/883 technical specifications.
General
Accuracy
2%
Dropout Voltage
1.5V
Lead Free
Contains Lead
Max Input Voltage
30V
Min Input Voltage
17.6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
100mA
Mount
Through Hole
Number of Outputs
1
Output Type
Fixed
Output Voltage
15V
Polarity
Positive
Quiescent Current
4.5mA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM140LAH-15/883 Datasheet
Download the complete datasheet for Texas Instruments LM140LAH-15/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

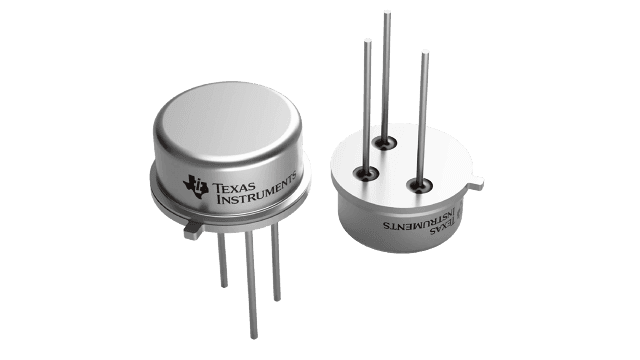

Product Images
