Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose amplifier offers 2 channels with a 100dB voltage gain and 40mA output current per channel. Operating from a 3V to 32V supply range, it boasts a 70dB common mode rejection ratio and 65dB power supply rejection ratio. Packaged in a TO-99-8 through-hole mount, it operates across a wide temperature range of -55°C to 125°C.
PackageTO-99-8
Current500uA
MountingThrough Hole
Power550mW
Quick Jump:
Technical Specifications
Texas Instruments LM158AH technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TO-99-8
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Input Bias Current
50nA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
500
Packaging
Bulk
Power Dissipation
550mW
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Supply Current
500uA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM158AH Datasheet
Download the complete datasheet for Texas Instruments LM158AH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

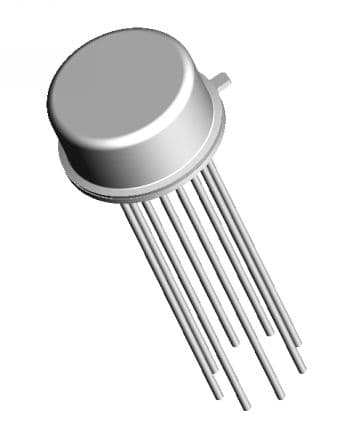

Product Images
