Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose op-amp offers a wide operating temperature range of -55°C to 125°C and supports dual supply voltages from 1.5V to 16V, with a maximum single supply of 32V. It boasts a 70dB common mode rejection ratio and 65dB power supply rejection ratio, with 2mV input offset voltage and 50nA input bias current. Packaged in a TO-99-8 through-hole configuration, this RoHS compliant component is ideal for various electronic applications.
PackageTO-99-8
Current500uA
MountingThrough Hole
Power550mW
Quick Jump:
Technical Specifications
Texas Instruments LM158AH/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TO-99-8
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Input Bias Current
50nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
500
Packaging
Bulk
Power Dissipation
550mW
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
500uA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM158AH/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM158AH/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

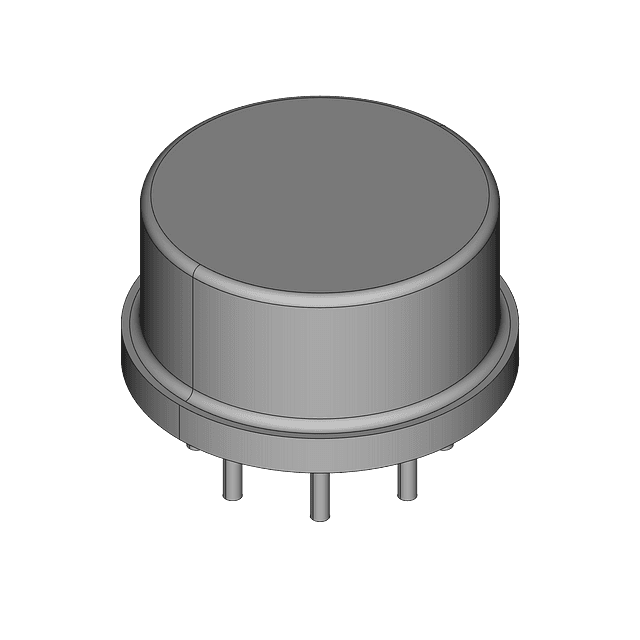

Product Images
