PackageTO-46
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM185H-2.5 technical specifications.
General
Package/Case
TO-46
Cathode Current
20uA
Height
2.67mm
Lead Free
Contains Lead
Length
5.44mm
Max Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
20mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Mount
Through Hole
Number of Channels
1
Output Current
20mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reference Type
Shunt
RoHS Compliant
No
Tolerance
1.5%
Width
5.44mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM185H-2.5 Datasheet
Download the complete datasheet for Texas Instruments LM185H-2.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

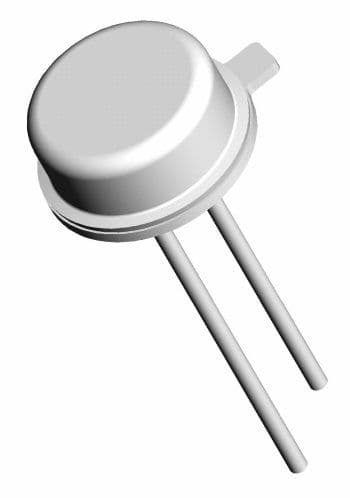

Product Images
