PackageCDIP
Current500uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM193AJRLQMLV technical specifications.
General
Package/Case
CDIP
Input Bias Current
100nA
Input Offset Voltage (Vos)
5mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
780mW
Max Supply Current
1mA
Max Supply Voltage
36V
Min Supply Voltage
2V
Mount
Through Hole
Number of Channels
2
Output Current
16mA
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
Yes
Response Time
0.7us
RoHS Compliant
No
Series
LM193QML-SP
Supply Current
500uA
Compliance
RoHS
Not CompliantYes
Datasheet
Texas Instruments LM193AJRLQMLV Datasheet
Download the complete datasheet for Texas Instruments LM193AJRLQMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

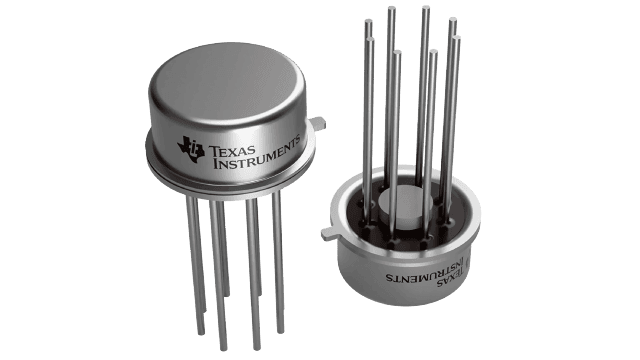

Product Images
