Step-down voltage regulator with a 5V fixed output, capable of delivering up to 1A. Operates from a 4.5V to 42V input range, achieving up to 90% efficiency. Features adjustable frequency operation and a positive output configuration. Packaged in an 8-SO PowerPAD (HSOP) for surface mounting, with dimensions of 4.9mm (L) x 3.9mm (W) x 1.47mm (H). Operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
PackageHSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22672MR-5.0/NOPB technical specifications.
General
Package/Case
HSOP
Efficiency
90%
Height
1.47mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Quiescent Current
3.4mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM22672MR-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22672MR-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

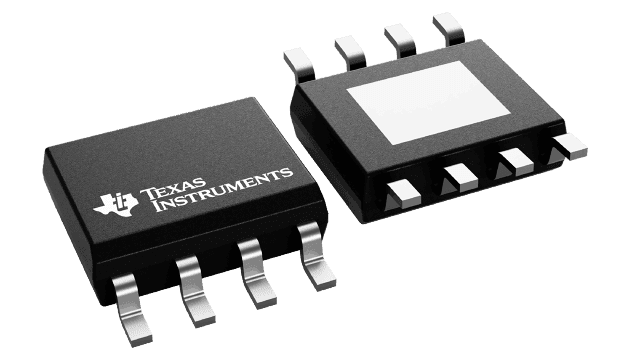

Product Images
