3A Step-Down Regulator, featuring a 5V fixed output voltage and a wide 4.5V to 42V input voltage range. This power management IC offers up to 90% efficiency and a low quiescent current of 3.4mA. Packaged in an 8-SO PowerPAD (HSOP) for surface mounting, it operates from -40°C to 125°C. RoHS compliant and lead-free, this single-output regulator is ideal for various power conversion applications.
PackageHSOP
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22676MR-5.0/NOPB technical specifications.
General
Package/Case
HSOP
Efficiency
90%
Height
1.47mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
95
Packaging
Rail/Tube
Quiescent Current
3.4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Voltage
5V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM22676MR-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22676MR-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

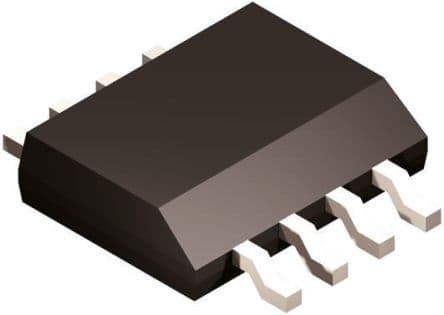

Product Images
