3A, 5V fixed output step-down regulator with a 4.5V to 42V input voltage range. This surface mountable integrated circuit features a positive output configuration and operates from -40°C to 125°C. Designed for efficient power management, it offers a quiescent current of 3.4mA and is supplied in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22676MRX-5.0/NOPB technical specifications.
General
Lead Free
Lead Free
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
42V
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
3.4mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM22676MRX-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22676MRX-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

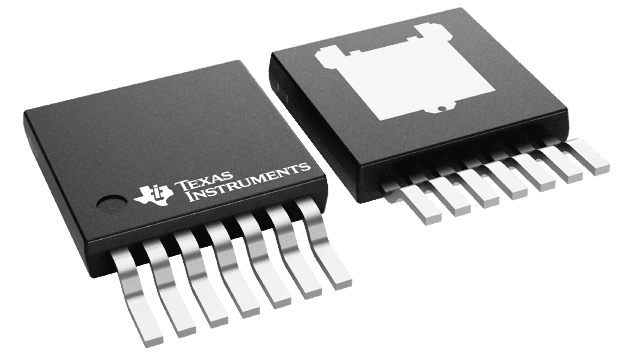

Product Images
