Adjustable 5A step-down voltage regulator with a 4.5V to 42V input range. Features 90% efficiency at 500kHz switching frequency and an adjustable soft-start function. Delivers up to 5A output current with an adjustable output voltage from 1.285V to 37V. Packaged in a TO-263 surface-mount case, operating from -40°C to 125°C. RoHS compliant and lead-free.
Frequency500kHz
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22679TJE-ADJ/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
90%
Frequency
500kHz
Height
2mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
37V
Min Output Voltage
1.285V
Max Supply Voltage
42V
Min Supply Voltage
4.7V
Mount
Surface Mount
Number of Outputs
1
Output Current
5A
Output Type
Adjustable
Output Voltage
1.285V
Packaging
Tape and Reel
Quiescent Current
3.4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Width
9.85mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM22679TJE-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22679TJE-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

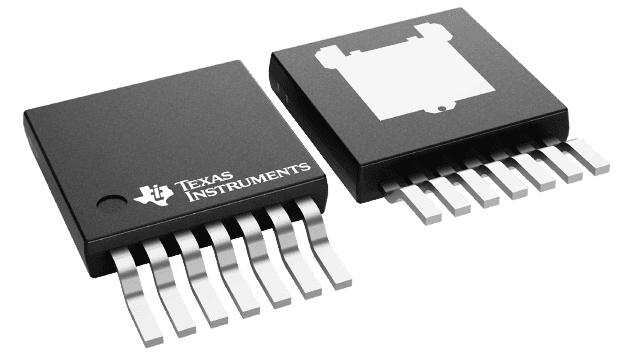

Product Images
