Texas Instruments
LM235H/NOPB
Temperature Sensor TO-46-3 Analog Voltage 1mA Through Hole -40°C to 125°C
The LM235H/NOPB is a temperature sensor from Texas Instruments, packaged in a TO-46-3 case and designed for through-hole mounting. It features an analog voltage output and a quiescent current of 1mA. The device is RoHS compliant and operates over a temperature range of -40°C to 125°C.
PackageTO-46-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM235H/NOPB technical specifications.
General
| Package/Case | TO-46-3 |
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Output Type | Analog Voltage, Analog |
| Packaging | Box |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM235H/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM235H/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

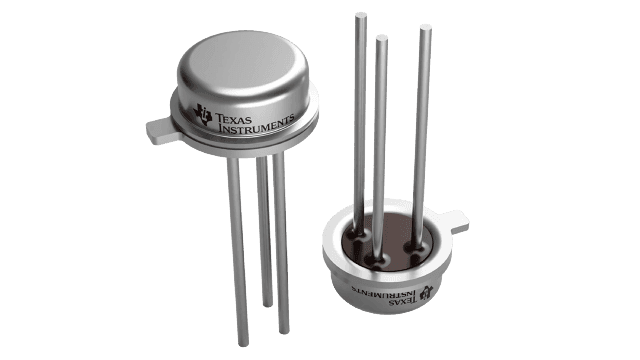

Product Images
