Automotive-grade, constant on-time, non-synchronous buck regulator with a 6V to 42V input voltage range and 1A maximum output current. Features adjustable output voltage from 2.5V to 37V, achieving up to 95% efficiency. Operates across a -40°C to 150°C temperature range, with a maximum operating temperature of 125°C. Packaged in a 14-HTSSOP for surface mounting, this lead-free, RoHS compliant component is supplied on tape and reel.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25010Q0MHX/NOPB technical specifications.
General
Package/Case
HTSSOP
Efficiency
95%
Lead Free
Lead Free
Max Input Voltage
42V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
37V
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
7.4V
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
645uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM25010Q0MHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25010Q0MHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

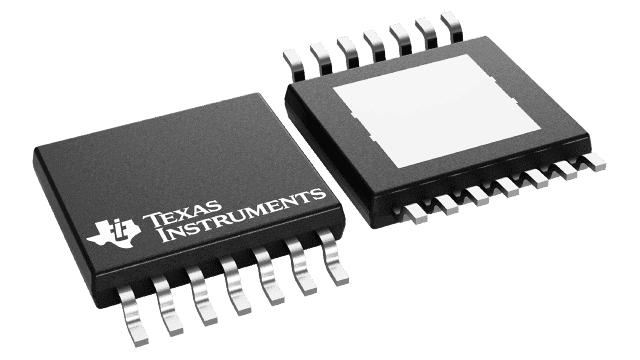

Product Images
