5V fixed output, 500mA step-down voltage regulator. Features a 4V to 60V input voltage range and 77% efficiency. Operates from -40°C to 125°C in a 14-SOIC package. Surface mountable with a single positive output configuration.
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2574HVM-5.0 technical specifications.
General
Package/Case
SOIC W
Efficiency
77%
Height
2.3mm
Input Bias Current
50nA
Lead Free
Contains Lead
Length
8.99mm
Max Input Voltage
60V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
5V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
7.5mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2574HVM-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2574HVM-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

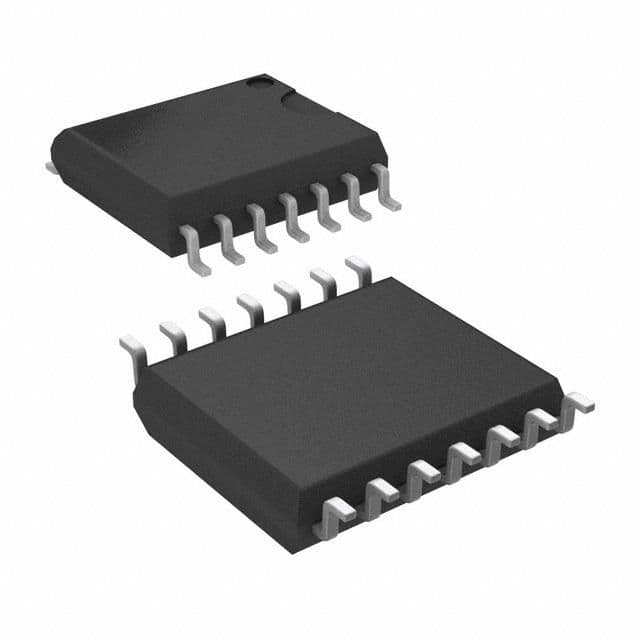

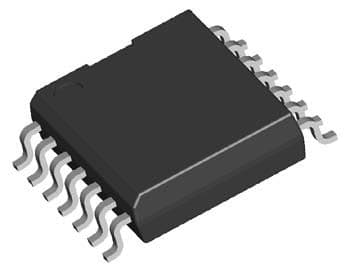

Product Images
