5V fixed output voltage, 0.5A step-down voltage regulator. Features a 4V to 60V input voltage range and 77% efficiency. Operates from -40°C to 125°C with a 5mA quiescent current. Surface mountable in a 14-SOIC package.
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2574HVM-5.0/NOPB technical specifications.
General
Package/Case
SOIC W
Efficiency
77%
Height
2.35mm
Lead Free
Lead Free
Length
9.2mm
Max Input Voltage
60V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2574HVM-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2574HVM-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

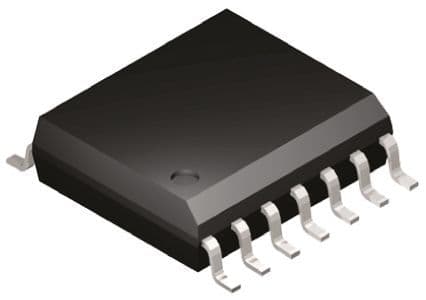

Product Images
