Texas Instruments
LM2574N-3.3/NOPB
8V to 40V, 500mA SIMPLE SWITCHER® buck converter with 4 external components 8-PDIP -40 to 125
PackagePDIP
Quick Jump:
Technical Specifications
Texas Instruments LM2574N-3.3/NOPB technical specifications.
General
Package/Case
PDIP
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Number of Outputs
1
Operating Supply Current
5mA
Output Current
500mA
Output Voltage
3.3V
Package Quantity
40
Packaging
Rail/Tube
Quiescent Current
5mA
RoHS Compliant
Yes
Series
LM2574
Weight
0.015521oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2574N-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2574N-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

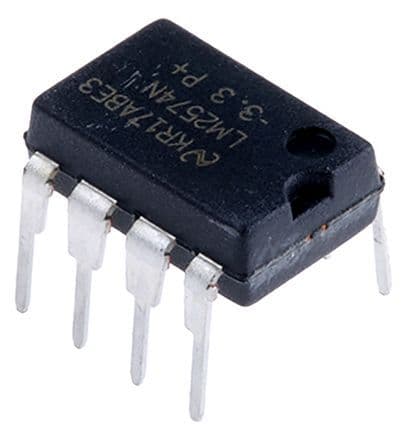

Product Images
