1A Step-Down Voltage Regulator, featuring a fixed 3.3V output and a maximum output current of 1A. Operates with an input voltage range of 4V to 40V, suitable for surface mount applications. This integrated circuit offers a switching frequency of 52kHz and a wide operating temperature range from -40°C to 125°C. Packaged in a TO-263-5 (5-DDPAK/TO-263) case, it provides a single positive output.
Frequency52kHz
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2575S-3.3 technical specifications.
General
Package/Case
TO-263-5
Frequency
52kHz
Height
4.83mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
4.58mm
Width
8.42mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2575S-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2575S-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

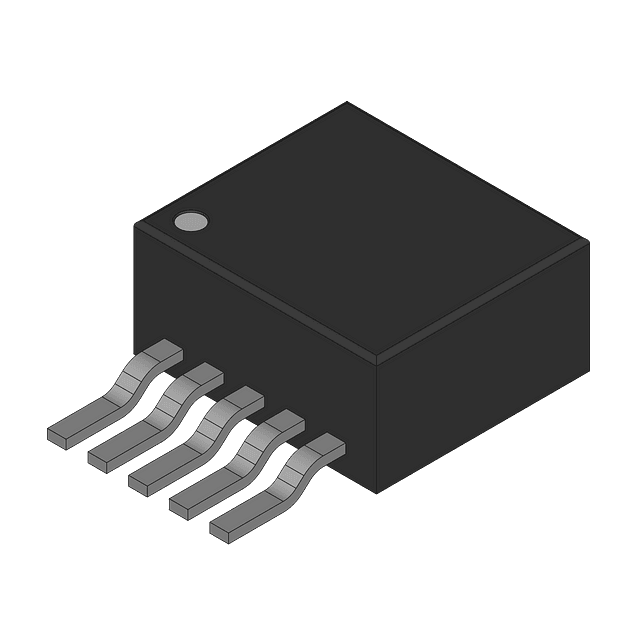

Product Images
