1A fixed output voltage regulator, offering a 5V nominal output. This DC-DC controller operates with an input voltage range of 4V to 40V and achieves 77% efficiency. Designed for surface mount applications in a TO-263-6 package, it supports a maximum operating temperature of 125°C. The component features a single output and a quiescent current of 10mA.
PackageTO-263-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2575SX-5.0/NOPB technical specifications.
General
Package/Case
TO-263-6
Efficiency
77%
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Packaging
Tape and Reel
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2575SX-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2575SX-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

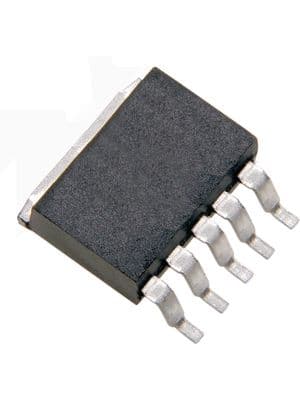

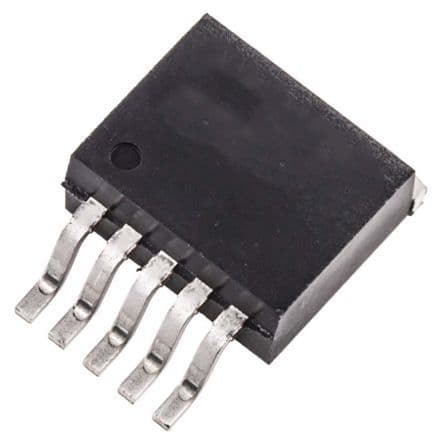

Product Images
