1A Step-Down Voltage Regulator, featuring a fixed 12V output and a 1A maximum output current. Operates with input voltages from 4V to 40V, achieving up to 88% efficiency at a 52kHz switching frequency. Housed in a TO-220-5 package for through-hole mounting, this positive output regulator supports a wide operating temperature range of -40°C to 125°C.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2575T-12 technical specifications.
General
Package/Case
TO-220-5
Efficiency
88%
Frequency
52kHz
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
12V
Min Output Voltage
12V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2575T-12 Datasheet
Download the complete datasheet for Texas Instruments LM2575T-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

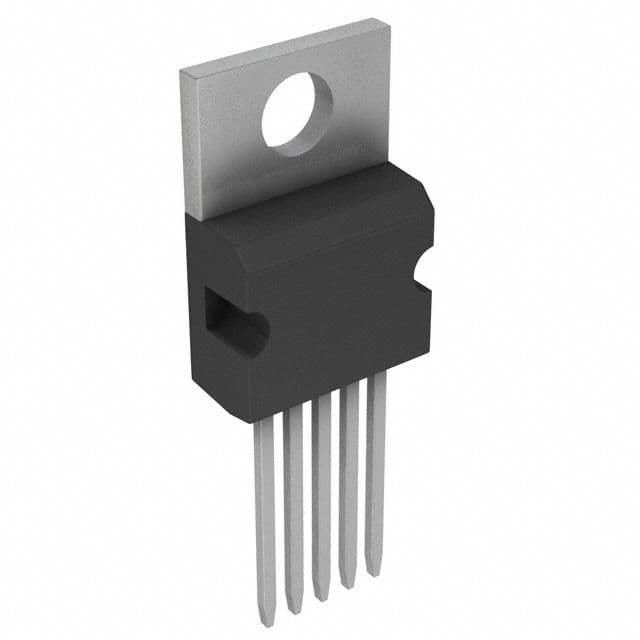

Product Images
