1A Step-Down Voltage Regulator, featuring a fixed 5V output and a maximum output current of 1A. Operates with input voltages ranging from 4V to 40V, delivering 77% efficiency at a 52kHz switching frequency. Housed in a TO-220-5 through-hole package, this component supports a wide operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
Frequency52kHz
PackageTO-220-5
Voltage5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2575T-5.0/NOPB technical specifications.
General
Package/Case
TO-220-5
Efficiency
77%
Frequency
52kHz
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
Through Hole
Voltage
5V
Weight
0.068079oz
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2575T-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2575T-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

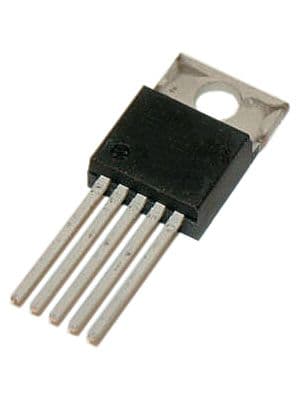

Product Images
