3A, 5V fixed output, step-down DC/DC regulator in a TO-263 package. Features a wide 4V to 60V input voltage range, 77% efficiency at 52kHz switching frequency, and a maximum output current of 3A. Operates from -40°C to 125°C with low quiescent current. Surface mountable with a low component count design.
Frequency52kHz
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2576HVS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
77%
Frequency
52kHz
Height
4.57mm
Length
10.16mm
Max Input Voltage
60V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.225V
Min Output Voltage
4.8V
Max Supply Voltage
60V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2576HV
Termination
SMD/SMT
Thickness
4.58mm
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2576HVS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2576HVS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

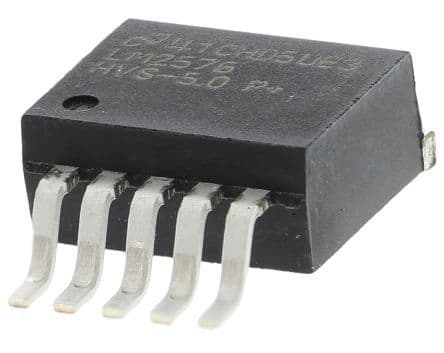

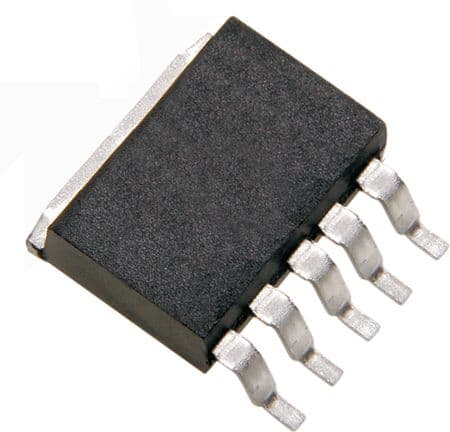

Product Images
