3A, 5V fixed output step-down regulator with a 40V maximum input voltage. This power management IC operates at a 52kHz switching frequency and features a low component count design. Packaged in a TO-220-5 through-hole mount, it offers a wide operating temperature range from -40°C to 125°C. The single positive output configuration delivers a stable 5V at up to 3A.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2576T-5.0 technical specifications.
General
Package/Case
TO-220-5
Frequency
52kHz
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
Through Hole
Thickness
4.58mm
Width
8.51mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2576T-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2576T-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

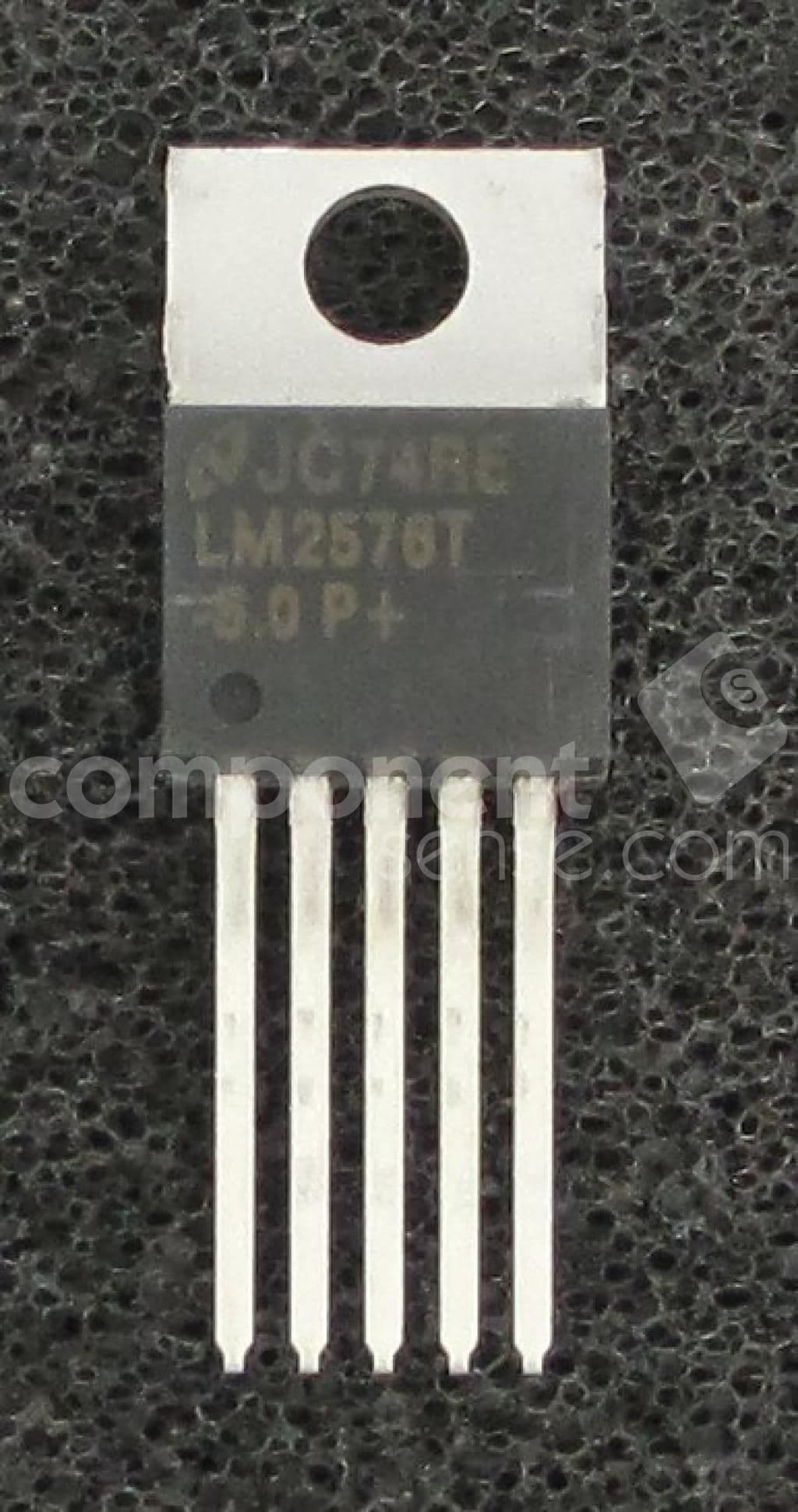

Product Images
