3A, 5V fixed output step-down regulator with a maximum input voltage of 40V. This power management IC features a low component count design and operates at a 52kHz switching frequency. It offers 77% efficiency and a wide operating temperature range of -40°C to 125°C. The component is housed in a TO-220-5 package for through-hole mounting and is RoHS compliant.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2576T-5.0/NOPB technical specifications.
General
Package/Case
TO-220-5
Efficiency
77%
Frequency
52kHz
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5.8A
Max Output Voltage
5.2V
Min Output Voltage
5V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.58mm
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2576T-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2576T-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

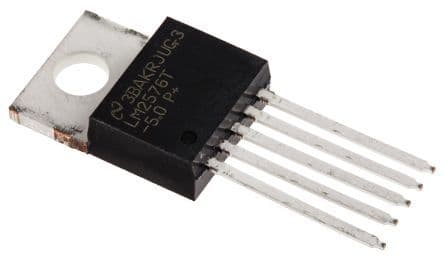

Product Images
