3A, 5V fixed output DC-DC controller and regulator featuring a wide 4V to 40V input range. This surface mount component, housed in a TO-263 package, supports boost, flyback, and forward converter topologies with up to 80% efficiency. Operating from -40°C to 125°C, it offers a 3A maximum output current and a nominal 5V output voltage.
PackageTO-263
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2585S-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
80%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.25V
Min Output Voltage
5V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
11mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Topology
Boost, Flyback, Forward Converter
Voltage
5V
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2585S-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2585S-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

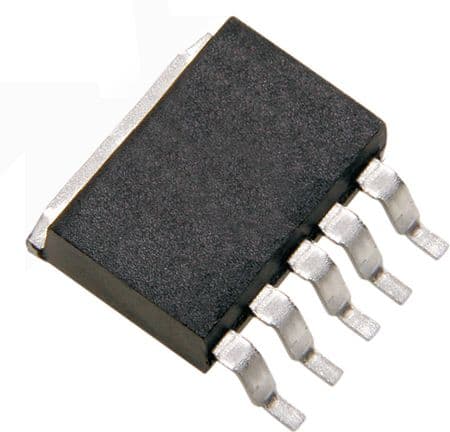

Product Images
