3A, 5V fixed output DC/DC controller and regulator with a 4V to 40V input voltage range. Features 80% efficiency at 100kHz switching frequency, supporting boost and flyback topologies. Packaged in a TO-220 through-hole mount, this component operates from -40°C to 125°C. It offers a maximum output current of 3A and is RoHS compliant.
Frequency100kHz
PackageTO-220
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2585T-5.0/NOPB technical specifications.
General
Package/Case
TO-220
Current Rating
3A
Efficiency
80%
Frequency
100kHz
Height
8.64mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.25V
Min Output Voltage
4.75V
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Through Hole
Number of Outputs
1
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
11mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2585
Termination
Through Hole
Topology
Boost, Flyback
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2585T-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2585T-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

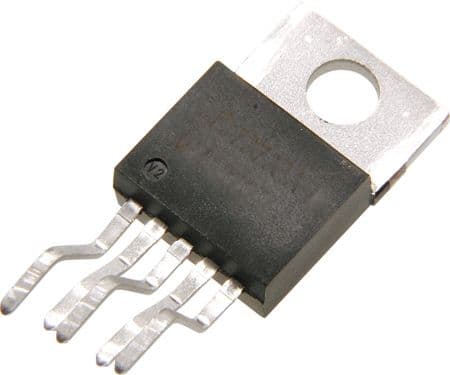

Product Images
