Dual operational amplifier IC, featuring a 700kHz gain bandwidth product and 0.3V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and 70dB common mode rejection ratio. Designed for surface mounting in an 8-SOIC package, it operates from a minimum dual supply voltage of 1.5V up to a maximum of 16V, with a maximum single supply of 32V. The device boasts a 150nA input bias current and 5mV input offset voltage, with an operating temperature range of -25°C to 85°C.
PackageSOIC
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM258D technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
700kHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
700kHz
Height
1.58mm
Input Bias Current
150nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
700kHz
Voltage Gain
100dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM258D Datasheet
Download the complete datasheet for Texas Instruments LM258D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

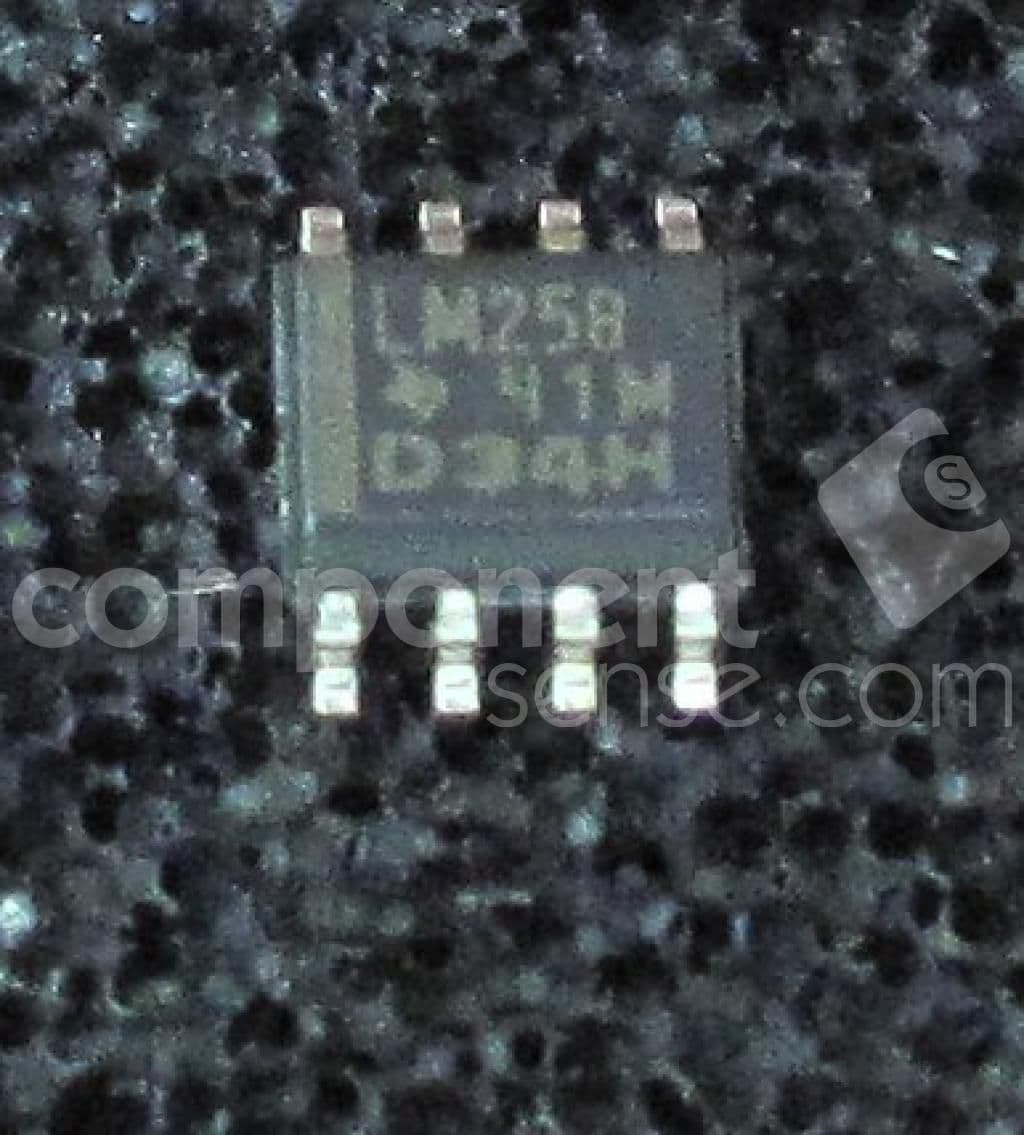

Product Images
