Dual general-purpose operational amplifier with a 700kHz bandwidth and 100dB voltage gain. Features include a 5mV input offset voltage, 150nA input bias current, and 70dB common mode rejection ratio. This through-hole mount IC operates from a 3V to 32V single supply or ±1.5V to ±16V dual supply, with a 0.3V/µs slew rate and 30mA output current per channel. Packaged in an 8-PDIP, it offers an industrial operating temperature range of -25°C to 85°C.
PackagePDIP
Current1.2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM258P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
700kHz
Package/Case
PDIP
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
700kHz
Height
4.57mm
Input Bias Current
150nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
700kHz
Voltage Gain
100dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM258P Datasheet
Download the complete datasheet for Texas Instruments LM258P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

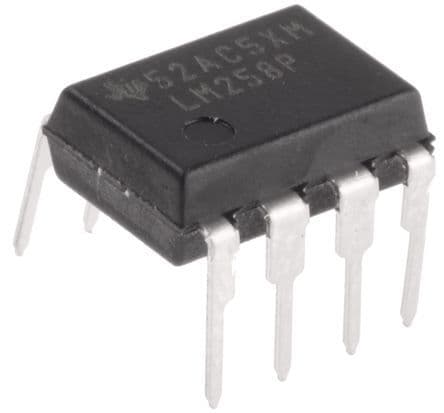

Product Images
