1A, 5V fixed output step-down voltage regulator with a 150 kHz switching frequency. Features a maximum input voltage of 60V and operates from 4.5V to 60V, delivering up to 1A output current. This power converter offers 82% efficiency and is housed in a TO-263 surface mount package. Operating temperature range is -40°C to 125°C.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2591HVS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
82%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
60V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
60V
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2591HV
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2591HVS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2591HVS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

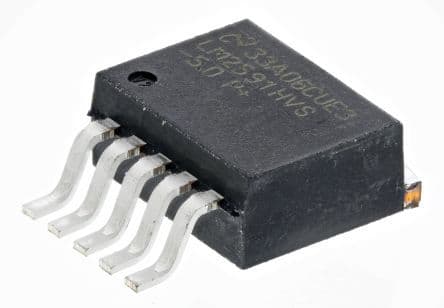

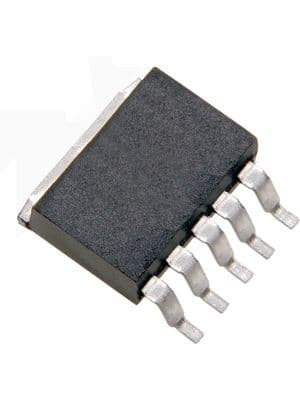

Product Images
