Step-down voltage regulator with a fixed 5V output, capable of delivering up to 2A. This DC/DC controller operates at 150 kHz, featuring a wide input voltage range from 4.5V to 60V and achieving 81% efficiency. Packaged in a TO-263 surface-mount case, it operates reliably between -40°C and 125°C.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2592HVS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
81%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
60V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
2A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2592HV
Weight
0.056128oz
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2592HVS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2592HVS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

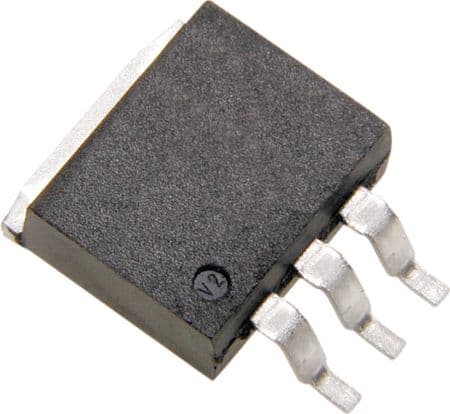

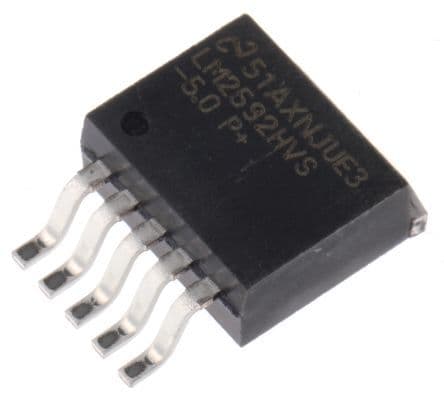

Product Images
