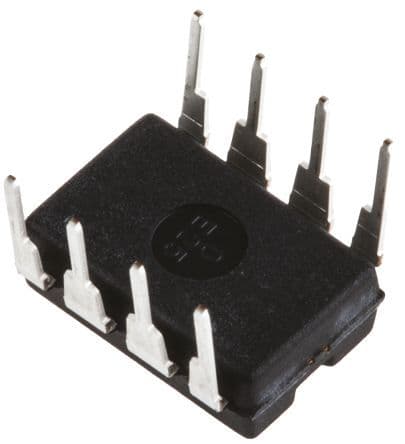

Adjustable step-down voltage regulator, part of the SIMPLE SWITCHER® series, offering a 150 kHz switching frequency and up to 0.5A output current. Features a wide input voltage range from 4.5V to 60V, with an adjustable output voltage from 1.2V to 57V. Operates efficiently at 80% and is housed in a lead-free 8-pin PDIP package for through-hole mounting. Designed for operation across a temperature range of -40°C to 125°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2594HVN-ADJ/NOPB technical specifications.
General
Package/Case
PDIP
Efficiency
80%
Height
3.3mm
Lead Free
Lead Free
Length
9.27mm
Max Input Voltage
60V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
57V
Min Output Voltage
1.2V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Outputs
1
Operating Supply Voltage
60V
Output Configuration
Positive
Output Current
500mA
Output Type
Adjustable
Output Voltage
57V
Package Quantity
40
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
6.35mm
Compliance
RoHS
Compliant
