1A Step-Down Voltage Regulator, featuring a fixed 5V output and 150kHz switching frequency. This power management IC operates with a 4.5V to 40V input voltage range, delivering up to 1A output current with 82% efficiency. Packaged in a TO-263 surface-mount form factor, it supports a wide operating temperature range from -40°C to 125°C.
Frequency150kHz
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2595S-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
82%
Frequency
150kHz
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Min Output Voltage
5V
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2595S-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2595S-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

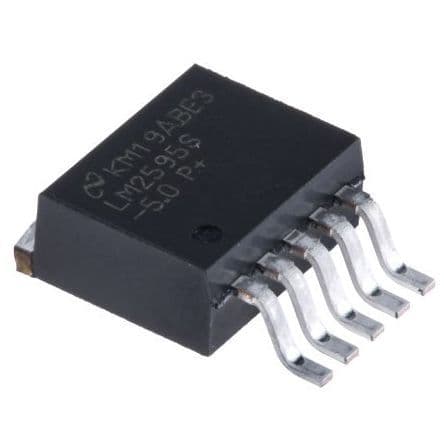

Product Images
