3A, 3.3V fixed output voltage step-down regulator in a TO-263-6 package. Operates from a 4.5V to 40V input voltage range with a 150kHz switching frequency. Features low component count and positive output configuration, suitable for surface mount applications. Maximum operating temperature is 125°C.
Frequency150kHz
PackageTO-263-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2596S-3.3 technical specifications.
General
Package/Case
TO-263-6
Frequency
150kHz
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
3.3V
Packaging
Rail/Tube
Quiescent Current
5mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
4.58mm
Width
8.42mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2596S-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2596S-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

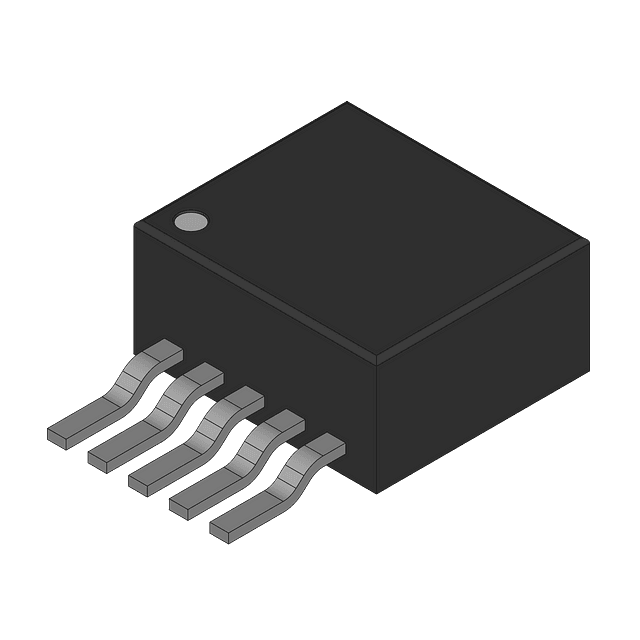

Product Images
