3A, 5V fixed output step-down regulator with a 4.5V to 40V input range. Features 80% efficiency and a low quiescent current of 5mA. This positive output regulator is housed in a TO-263 surface mount package. Operates across a wide temperature range of -40°C to 125°C.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2596SX-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
80%
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
500
Packaging
Tape and Reel
Quiescent Current
5mA
Reach SVHC Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.58mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2596SX-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2596SX-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

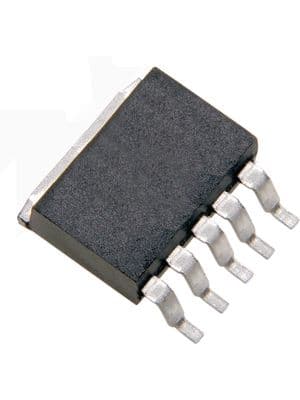

Product Images
