3.3V fixed output DC-DC switching regulator with a maximum output current of 3A. Features a 150kHz switching frequency and a maximum input voltage of 40V. Housed in a TO-220-5 package for through-hole mounting. Operates across a wide temperature range from -40°C to 125°C.
Frequency150kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2596T-3.3 technical specifications.
General
Package/Case
TO-220-5
Frequency
150kHz
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
Through Hole
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2596T-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2596T-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

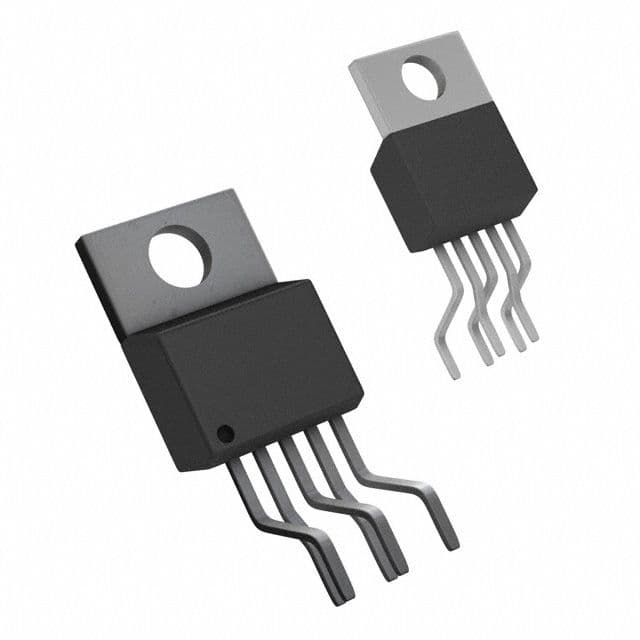

Product Images
