3A, 5V fixed output step-down regulator with a 4.5V to 40V input voltage range. Features low component count and TO-220-5 through-hole mounting. Operates from -40°C to 125°C with a 5mA quiescent current. Single positive output configuration.
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2596T-5.0 technical specifications.
General
Package/Case
TO-220-5
Height
4.7mm
Lead Free
Contains Lead
Length
14.986mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
5V
Mount
Through Hole
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.572mm
Width
10.16mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2596T-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2596T-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

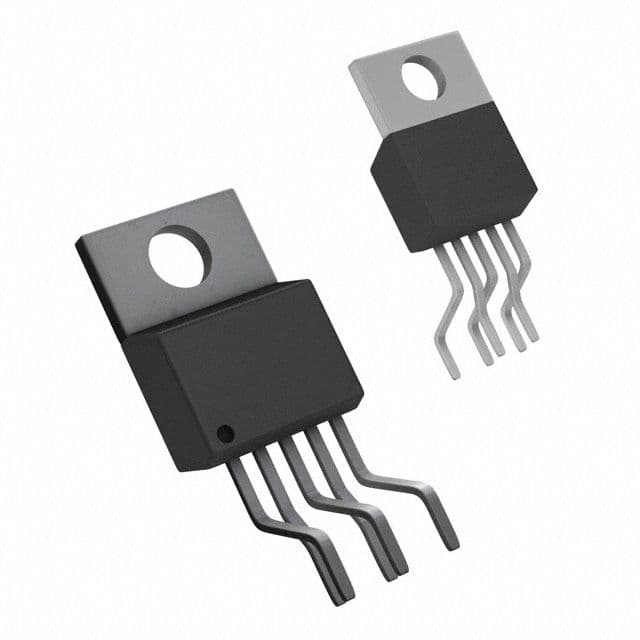

Product Images
